These reactors are mostly designed for chemical / polymer reactions under controlled conditions.

Our units are from 100mL up to 100L capacity and can have the following peripherals.

1
Stirring under air tight conditions . The stirrer bearing has two stainless steel ball bearings but with a special PTFE packing to ensure corrosive mixtures do not get to the stainless steel bearings.
2
There is also an option for a vacuum tight stirrer bearing should the reaction need to be under vacuum. Some customers also use these reactors to distil off solvents from a mixture.
3
Measure and control ph from ph2—ph14.
4
Temperature control via a hot oil/water circulator.
5
Peristaltic pumps for fluid handling.
6
Syringe pump for accurate small reagent addition.
7
Mechanical auger to add solids to the reactor at a controlled rate.
8
Logging of all data on a SD card on a .CSV format.
9
These reactors very often have to be completely inert to highly corrosive materials, in those cases we coat all the stainless steel parts with a 1mm thick PTFE layer.

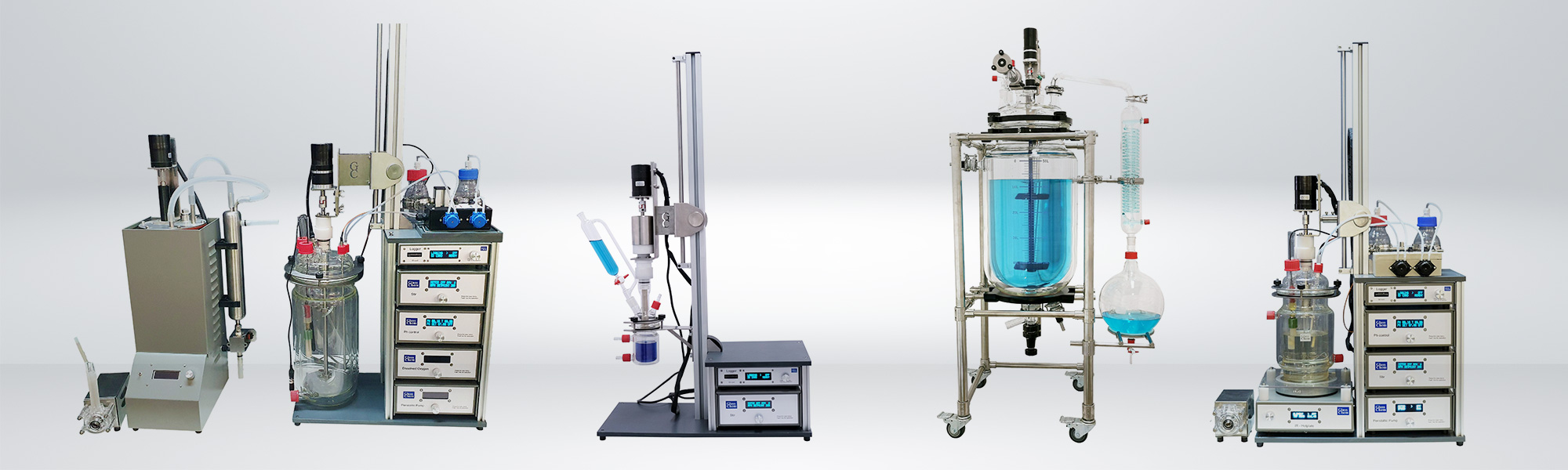

Product Range

5L Jacketed reactor

2-5L Jacketed reactor

Mechanically mounted stirrer system mounted on the lid. This whole section can be slided vertically up via a linear bearing system.

50L Jacketed reactor

50L Jacketed reactor

This reactor was designed to produce nano particles. It is connected to a chiller/ heater which can both heat to 45deg C, and cool down to 0 deg C.

Small volume vacuum reactor

Small volume vacuum reactor

This reactor is fitted with a 250ml jacketed reaction vessel for temperature control.

Stirring reactor

Stirring reactor

This unit was built just for stirring a mixture and monitoring the changes in viscosity.

Infrared bottom heating reactor

Infrared bottom heating reactor

These reactors are a lower budget type which uses an infrared hotplate or even a conventional hotplate heater for temperature control.
