Water Distillation
We manufacture 4 different models , each model can be fitted with a water circulator to prevent the wastage of cooling water.
The ideal is to mount these units either to a wall or bench that has access to the outside. If a water circulator is used, the warm air can be vented through a window to prevent the lab of over heating. Alternatively the circulator can be mounted outside and just the water in and out plumbed to the still.
Product Range
Latest Products
Product Range
WS4lc
This is our most popular model, featuring an epoxy coated enclosure with twin safety cutouts. Safety is provided via a water level controller in the boiler as well as a manual reset thermostat. The heating element is made from quarts glass.
These elements are designed and made in-house at Glasschem with exceptional durability.
Distilling capacity of 4l/hour at 240 V.

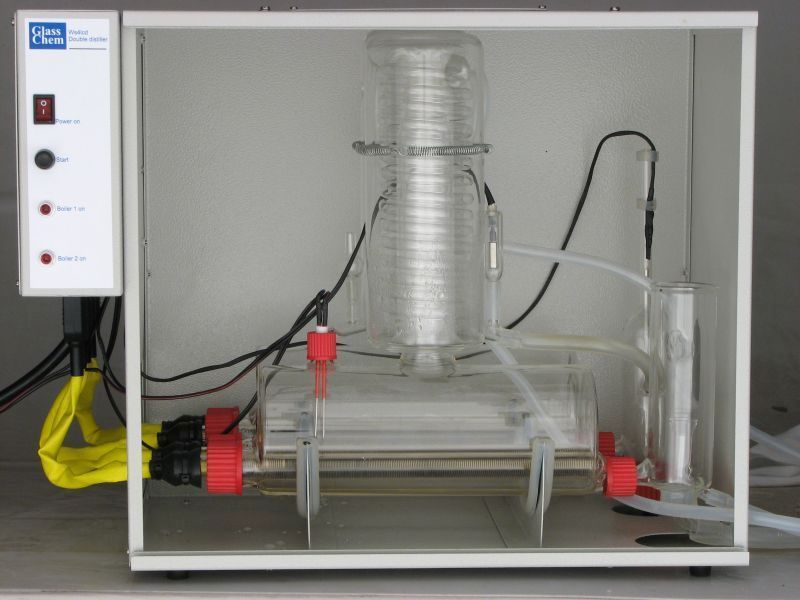

WS4lcd
This is a double distiller to produce ultra pure water at 4l/hour.
30 amp at 230Vac
WS8lc
The unit produces 8l/hour of distillate
30 amp at 230Vac
Water Station
The water station has an WS8lc mounted. The water is pre treated through a reverse osmosis system before entering the boiler. The distillate is collected in 2x 25L bot-tles. The water is dispensed on the top via a faucet and pressurized via a supply pump from the water tanks. The distilled water is pumped through a mixed bed resin to supply ultra pure water.
Behind the unit is a air, water cooler to circulate the cooling water and prevent wastage of water.
